[MSA] Spring Cloud로 개발하는 마이크로서비스 애플리케이션(MSA) - Catalogs and Orders Microservice 2(상품 주문, 상품 목록 조회)



Catalogs and Orders Microservice 개요

APIs

기능	URI(API Gateway 사용 시)	URI(API Gateway 미사용 시)	HTTP Method
상품 목록 조회	Catalogs Microservice	/catalog-service/catalogs	GET
사용자 별 상품 주문	Orders Microservice	/order-service/{user_id}/orders	POST
사용자 별 주문 내역 조회	Orders  Microservice	/order-service/{user_id}/orders	GET





Orders Microservice

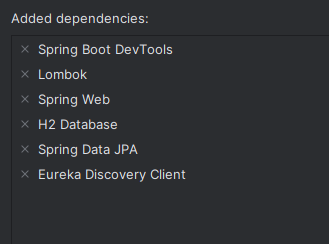

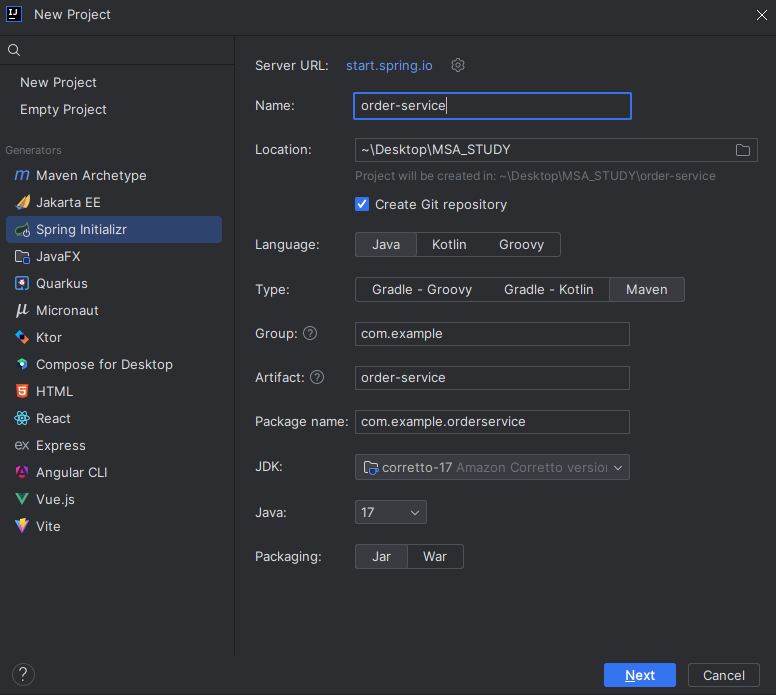

프로젝트 생성





build.gradle

ModelMapper dependancy 추가

• maven

<dependency>
    <groupId>org.modelmapper</groupId>
    <artifactId>modelmapper</artifactId>
    <version>3.1.1</version>
</dependency>



• gradle

implementation 'org.modelmapper:modelmapper:2.4.2'





application.yml

server:
  port: 0

spring:
  application:
    name: order-service
  h2:
    console:
      enabled: true
      settings:
        web-allow-others: true
      path: /h2-console
  jpa:
    hibernate:
      ddl-auto: update
    defer-datasource-initialization: true
  datasource:
    driver-class-name: org.h2.Driver
    url : jdbc:h2:mem:testdb

eureka:
  instance:
    instance-id: ${spring.application.name}:${spring.application.instance_id:${random.value}}
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:8761/eureka

logging:
  level:
    com.example.orderservice: DEBUG





OrderEntity.java

@Data
@Entity
@Table(name = "orders")
public class OrderEntity implements Serializable {
    // 직렬화를 사용하는 이유 : 가지고 있는 객체를 전송하거나 DB에 보관하기 위해 마샬링 작업을 위해 사용

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false, length = 120, unique = true)
    private String productId;

    @Column(nullable = false)
    private Integer qty;

    @Column(nullable = false)
    private Integer unitPrice;

    @Column(nullable = false)
    private Integer totalPrice;

    @Column(nullable = false)
    private String userId;

    @Column(nullable = false, unique = true)
    private String orderId;

    @Column(nullable = false, updatable = false, insertable = false)
    @ColumnDefault(value = "CURRENT_TIMESTAMP")
    private LocalDateTime createdAt;

}





OrderRepository.Interface

public interface OrderRepository extends CrudRepository<OrderRepository, Long> {
    OrderEntity findByOrderId(String orderId);
    Iterable<OrderEntity> findByUserId(String userId);
}





OrderDto.java

@Data
public class OrderDto implements Serializable {
    private String productId;
    private Integer qty;
    private Integer unitPrice;
    private Integer totalPrice;

    private String orderId;
    private String userId;
}





ResponseOrder.java

@Data
@JsonInclude(JsonInclude.Include.NON_NULL)
public class ResponseOrder {

    private String productId;
    private Integer qty;
    private Integer unitPrice;
    private Integer totalPrice;
    private LocalDateTime createdAt;

    private String orderId;
}





OrderService.interface

public interface OrderService {
    OrderDto createOrder(OrderDto orderDetails);
    OrderDto getOrderByOrderId(String orderId);
    Iterable<OrderEntity> getOrdersByUserId(String userId);
}





OrderServiceImpl.java

@Service
public class OrderServiceImpl implements OrderService{

    OrderRepository orderRepository;

    @Autowired
    public OrderServiceImpl(OrderRepository orderRepository) {
        this.orderRepository = orderRepository;
    }

    @Override
    public OrderDto createOrder(OrderDto orderDto) {
        orderDto.setOrderId(UUID.randomUUID().toString());
        orderDto.setTotalPrice(orderDto.getQty() * orderDto.getUnitPrice());

        ModelMapper mapper = new ModelMapper();
        mapper.getConfiguration().setMatchingStrategy(MatchingStrategies.STRICT);
        OrderEntity orderEntity = mapper.map(orderDto, OrderEntity.class);

        orderRepository.save(orderEntity);

        OrderDto returnValue = mapper.map(orderEntity, OrderDto.class);

        return returnValue;
    }

    @Override
    public OrderDto getOrderByOrderId(String orderId) {
        OrderEntity orderEntity = orderRepository.findByOrderId(orderId);
        OrderDto orderDto = new ModelMapper().map(orderEntity, OrderDto.class);

        return orderDto;
    }


    @Override
    public Iterable<OrderEntity> getOrdersByUserId(String orderId) {
        return orderRepository.findByUserId(orderId);
    }
}





OrderController

@RestController
@RequestMapping("/order-service")
public class OrderController {
    Environment env;
    OrderService orderService;

    @Autowired
    public OrderController(Environment env, OrderService orderService) {
        this.env = env;
        this.orderService = orderService;
    }

    @GetMapping("/health_check")
    public String status() {
        return String.format("It's Working in Catalog Service on PORT %s",
                env.getProperty("local.server.port"));
    }

    @PostMapping("/{userId}/orders")
    public ResponseEntity<ResponseOrder> createOrder(@PathVariable("userId") String userId, @RequestBody RequestOrder orderDetails) {
        ModelMapper mapper = new ModelMapper();
        mapper.getConfiguration().setMatchingStrategy(MatchingStrategies.STRICT);

        OrderDto orderDto = mapper.map(orderDetails, OrderDto.class);
        orderDto.setUserId(userId);
        OrderDto createdOrder = orderService.createOrder(orderDto);

        ResponseOrder responseOrder = mapper.map(createdOrder, ResponseOrder.class);

        return ResponseEntity.status(HttpStatus.CREATED).body(responseOrder);
    }

    @GetMapping("/{userId}/orders")
    public ResponseEntity<List<ResponseOrder>> getOrder(@PathVariable("userId") String userId) {
        Iterable<OrderEntity> orderList = orderService.getOrdersByUserId(userId);

        List<ResponseOrder> result = new ArrayList<>();
        orderList.forEach(v -> result.add(new ModelMapper().map(v, ResponseOrder.class)));

        return ResponseEntity.status(HttpStatus.OK).body(result);
    }
}







apigatway-service

application.yml

  routes:
    - id: user-service
      uri: lb://USER-SERVICE
      predicates:
        - Path=/user-service/**
    - id: catalog-service
      uri: lb://CATALOG-SERVICE
      predicates:
        - Path=/catalog-service/**
    - id: order-service
      uri: lb://ORDER-SERVICE
      predicates:
        - Path=/order-service/**

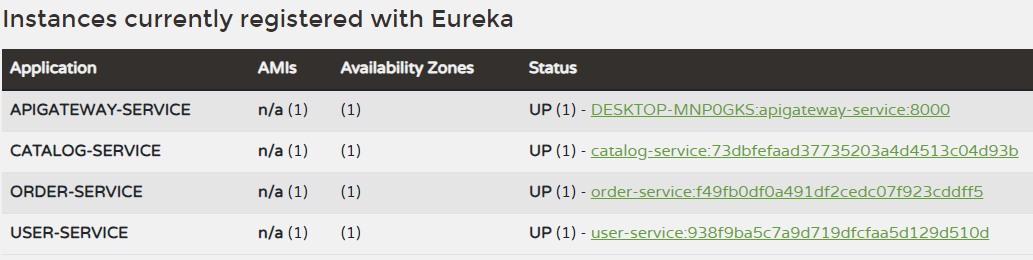

서버 가동 후 유레카 대시보드 확인

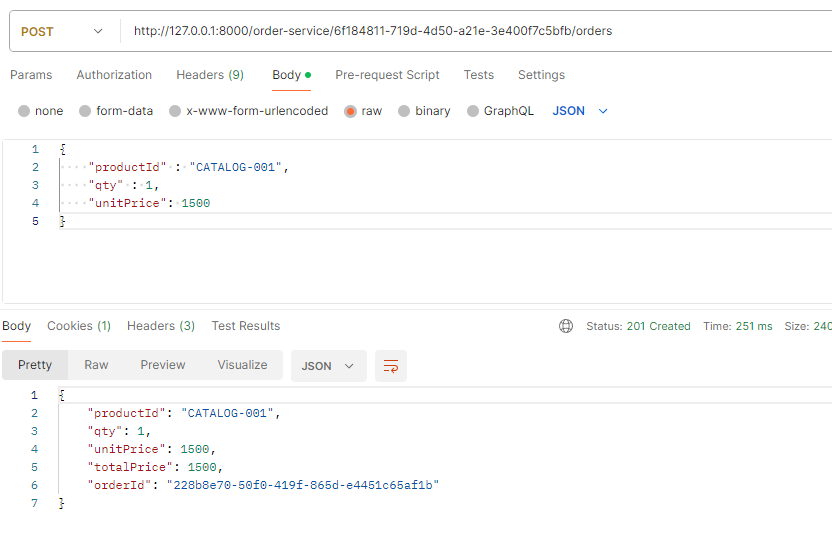

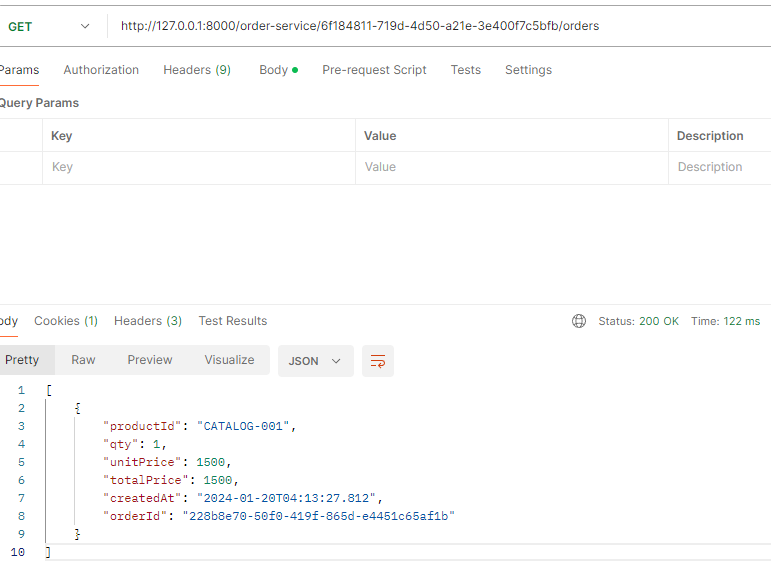

postman으로 주문 등록과 조회를 해보자..
